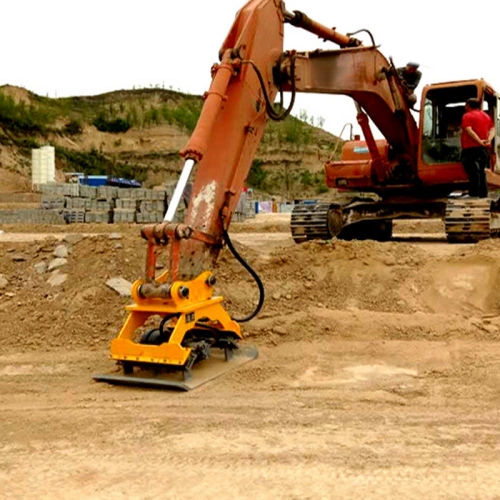

Mounting an excavator plate compactor boosts backfill efficiency by over four times compared to hand-held tampers. Walk-behind plate compactors cannot reach deep narrow trenches safely. They also pose severe cave-in risks for ground workers.
A hydraulic compactor uses digger oil flow to spin eccentric weights fast, creating tons of vibration force. This strong impact squeezes water and air out of soil layers quickly. It delivers high density in deep soil beds. Using this tool keeps workers out of deep trenches and increases daily work coverage fast.
How Do You Select an Excavator Plate Compactor by Weight and Flow?
Selecting an excavator plate compactor requires checking carrier weight, vibration force (KN), excitation frequency (RPM), working pressure (MPA), and maximum flow (L/min). Review the official spec table below:
| Model | Suitable Excavators (T) | Vibration Force (KN) | Excitation Frequency (RPM) | Working Pressure (MPA) | Maximum Flow (L/min) | Dimensions L*W*H (mm) | Hit Area (mm) | Machine Weight (KG) | Matched Field Application |
| YG-32 | 4 – 9 T | 40 KN | ≥2000 RPM | 15 MPA | 60 L/min | 900*550*750 mm | 900*550 mm | 380 KG | Narrow utility trenches, yards, shallow soil |
| YG-50 | 10 – 18 T | 65 KN | ≥2000 RPM | 15 MPA | 100 L/min | 1160*700*930 mm | 1160*700 mm | 550 KG | Patching city roads, medium trench backfilling |
| YG-80 | 20 – 27 T | 110 KN | ≥2200 RPM | 15 MPA | 160 L/min | 1350*900*1000 mm | 1350*900 mm | 920 KG | Highway roadbeds, deep pipe backfilling |
| YG-107 | 30 – 40 T | 150 KN | ≥2200 RPM | 15 MPA | 160 L/min | 1350*900*1050 mm | 1350*900 mm | 1050 KG | Mine roadbeds, heavy building foundations |
Operator Tip: Always install a pressure relief valve on your oil line. Excess pressure damages hydraulic motors, and high flow overheats eccentric bearings.
Where Do Contractors Deploy an Excavator Plate Compactor?

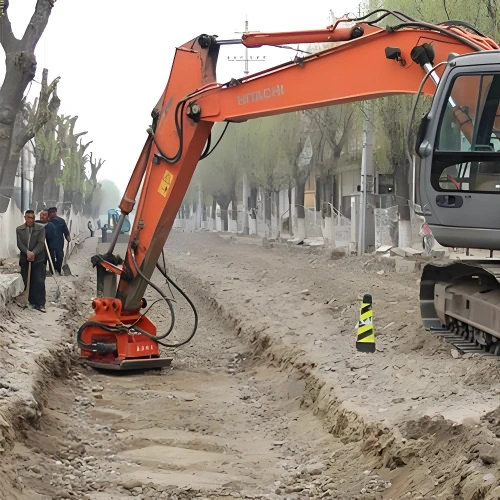

- Pipeline Trenches and Utility Backfilling: An excavator plate compactor reaches deep narrow trenches to compact soil layers, preventing future road drops.
- Road Slopes and River Embankments: Long excavator arms extend compactors up steep banks to shape and firm loose dirt easily.

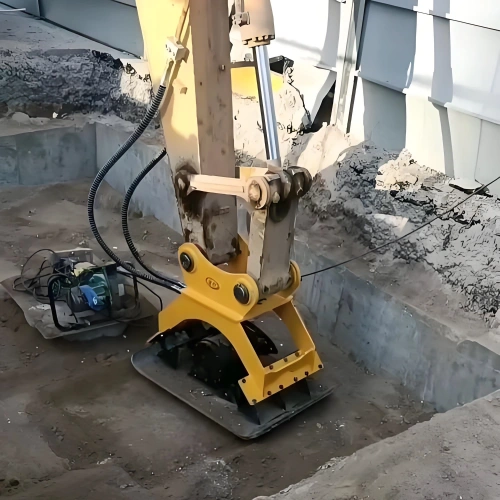

- Abutment and Foundation Compaction: High-frequency vibration works well in tight corners to meet strict compaction degree codes.
- Site Clearance Teamwork: On utility sites, compactors handle foundation packing. Ground teams can pair them with a car dismantling shear to cut scrap frames, use an excavator magnet to sweep up dropped steel bolts, or run a hydraulic sand pump for excavator to drain muddy pits.
Operator Tip: Move your compactor from the bottom of a slope upward. Working from top to bottom slides loose soil downward and ruins the bank.
How Did an Excavator Plate Compactor Help a Slope Job in Saudi Arabia?
- Jobsite Challenge: Road contractor Tariq ran a pipe trench job in Saudi Arabia. Loose sandy soil caved in often, making hand tamping unsafe. Poor soil compaction held up site inspections, threatening thousands in weekly delay fines.
- Equipment Solution: YG Machinery engineers matched an excavator plate compactor (Model: YG-80, 110KN vibration force) with heavy rubber dampers to his 20-ton digger.
- Real Business Results: The compactor worked 3-meter deep trenches easily, passing density tests on the first try. Daily output jumped by 300%. The team finished 10 days early, saving over $12,000 in labor and penalty costs.
Operator Tip: Check rubber damper bolts weekly. Loose mounting bolts allow vibrations to travel back up the boom, damaging main arm cylinders.
Frequently Asked Questions About Excavator Plate Compactor Selection
Eccentric weights generate intense high-frequency vibration. Quality rubber dampers absorb over 90% of shock recoil, protecting digger booms, pins, and hydraulic lines from crack damage.
The best soil layer lift thickness ranges between 30 and 60 centimeters. Layers thicker than 60 cm stay loose underneath, while thin layers waste fuel and operating time.
Eccentric shaft bearings turn at high speeds. Inject heavy-duty high-temp grease into bearing housings every 40 operating hours to extend bearing life.
Contact YG Machinery for Your Tailored Compactor Quote
Ready to speed up trench backfilling and ensure firm compaction? The YG Machinery engineering team offers oil flow matching, plate size advice, and direct factory quotes. Contact our team today for catalogs and jobsite videos!
