Choosing the wrong road marking machine leads to downtime, material waste, and failed inspections. Thermoplastic lines last 2 to 4 years, while cold paint lines last only 3 to 6 months. Picking the right unit keeps your budget intact and your project on schedule.
Where Should You Deploy a Road Marking Machine?
A road marking machine works across municipal roads, highways, factory floors, underground parking lots, schools, and airport runways.

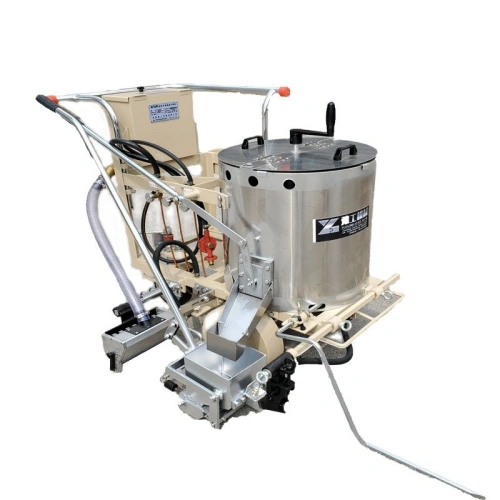

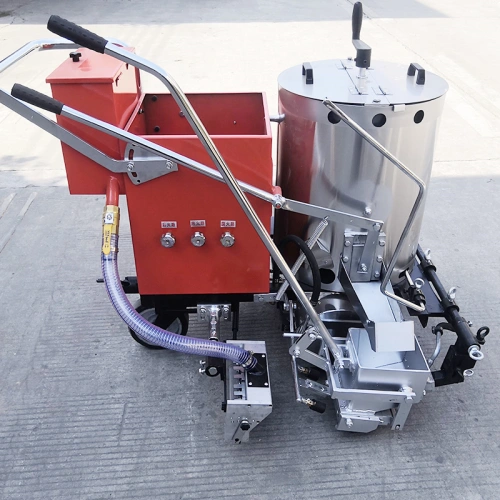

- Highways and Arterial Roads: Use a thermoplastic road marking machine. Heating paint to 180°C–210°C creates durable lines with a thickness of 1.5–1.8mm that dry in seconds and offer high visibility.

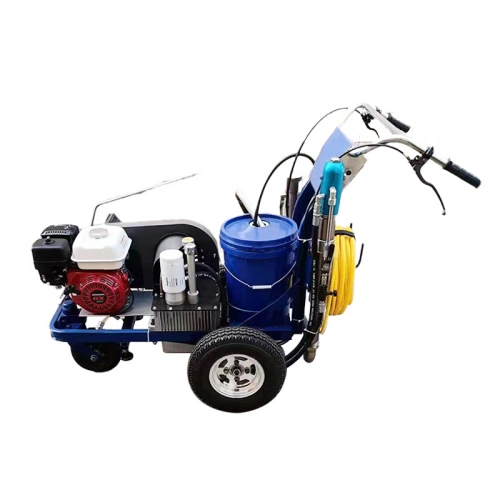

- Parking Lots and Residential Paths: Opt for a cold paint road marking machine or a manual thermoplastic unit like the YG360/YG380. Equipped with a standard 150mm screed box, these units navigate tight corners easily.
- Speed Bumps and Warning Zones: Select a raised profile thermoplastic marking machine. It lays 3–5mm raised bumps in a single pass to provide immediate rumble tactile alerts.
- Old Line Removal and Surface Prep: Pair your setup with a road striping machine system including a line remover (YG1050) and a road blower to clear debris and old paint for solid adhesion.
Pro Tip: For indoor or underground garages, go with the electric YG380S or an electric cold sprayer. They generate zero exhaust and keep noise levels low.
How to Compare a Thermoplastic Road Marking Machine vs. a Cold Paint Road Marking Machine?
Thermoplastic and cold paint systems differ in coating formulas, equipment investment, speed, and line service life.
| Feature / Metric | Thermoplastic Road Marking Machine | Cold Paint Road Marking Machine |
| Line Thickness | 1.5 – 1.8 mm | 0.2 – 0.4 mm |
| Service Life | 2 – 4 Years | 3 – 6 Months |
| Drying Time | Extremely Fast (~6 seconds) | Slower (1–2 hours) |
| Required Setup | Needs a pre-heater for max speed | Works as a standalone unit |
| Daily Output | 60 m² (Solo) / 300–2000 m² (With Pre-heater) | 500 – 2500 m² |

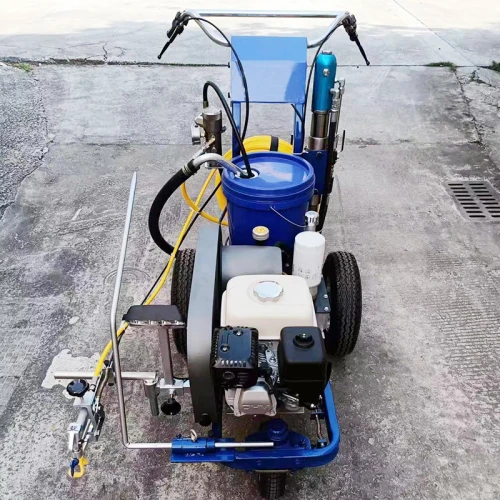

Thermoplastic application requires melting powder paint with a mix ratio of 1 ton paint to 1 bucket primer and 4 bags glass beads. Cold paint systems spray liquid paint under high pressure, like the YG-13L hydraulic airless unit operating at 8–25 MPa.
Pro Tip: If your daily coverage target exceeds 300 m², always buy a pre-heater alongside your marking cart. Otherwise, operators waste hours waiting for raw paint to melt.
Key Features to Inspect in a Road Striping Machine
When evaluating a road striping machine, focus on these practical mechanical specifications:
- Line Width and Screed Boxes: Check if the road striping machine accepts interchangeable screed boxes. The YG series supports widths from 50mm to 450mm.
- Power Source: For a thermoplastic marking machine, electric models (48V 15AH lithium battery) run up to two days per charge. Gasoline engines (like Honda 5.5HP) handle harsh remote job sites.
- Pre-Heater Agitation: Mechanical dual-kettle pre-heaters suit mid-sized projects (600–800 m²/day). Hydraulic double-kettle models (YG800/1000/1200) feature bi-directional mixing and yield up to 2000 m²/day.
- Spare Parts Stock: Keep extra copper nozzles, copper sleeves, screed box grounding knives, and spray tips on hand to prevent work stoppages.
Global Case Study: How a Kazakhstan Contractor Doubled Output
A road contractor in Kazakhstan took on a contract covering city streets and parking facilities. Working with a single hand-pushed marking cart, his crew achieved only 60 m² per day. This fell far behind schedule and inflated labor costs.
YG Machinery re-engineered their equipment setup by supplying one YG1000 hydraulic double-kettle pre-heater alongside two YG380 marking carts.
With continuous hot material supply from the 1000kg capacity pre-heater, the crew eliminated heating downtime. Daily production surged past 1500 m² per day, allowing the team to deliver the project 10 days early while slashing total field labor costs.
Pro Tip: Choose direct-injection burners for your pre-heater. They produce intense heat without clogging and save up to 20% on LPG gas consumption.
Frequently Asked Questions
One ton of standard thermoplastic paint covers ~220 m². Profile raised paint covers ~120 m². One ton of cold spray paint covers ~70 m².
On a thermoplastic unit, adjust the screed box bracket height for thickness and swap the screed box for width. On a cold sprayer, adjust the spray gun height to change width (5–45cm).
Whether you need a high-output thermoplastic road marking machine or a versatile cold paint road marking machine, getting the right match drives project profits.
Contact the YG Machinery technical team today for a custom setup recommendation and factory quote.
