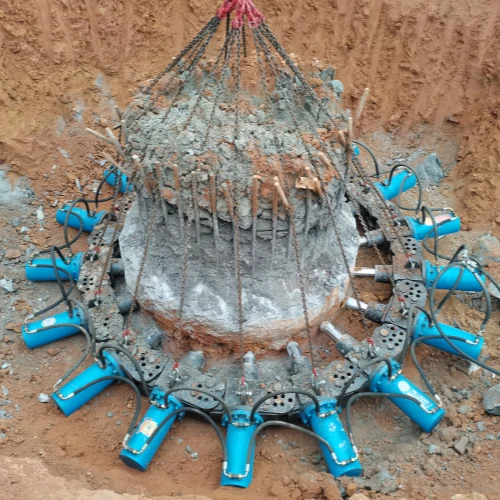

Selecting the wrong pile cutter damages internal rebar and slows daily pile trimming down. A built-to-last pile breaker uses synchronized hydraulic cylinders to crush cast-in-place or precast pile heads cleanly in seconds.
Field data shows that running a modular pile cutter works 15 to 20 times faster than manual jackhammers. Mechanical pile cutting keeps the core foundation structure intact while reducing site injury risks. In today’s market, this efficient method has become standard.
Pile Breaker Parameter
| Module Number | PCS | 4 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 |
| Combination of the total weight | KG | 1600 | 2640 | 2970 | 3300 | 3630 | 3960 | 4290 | 4620 | 4950 | 5280 | 5610 | 5940 |
| Pile diameter range | mm | 400-600 | 600-800 | 800-1000 | 1000-1150 | 1150-1300 | 1300-1500 | 1500-1650 | 1650-1800 | 1800-1970 | 1970-2200 | 2200-2360 | 2360-2500 |
| Hydraulic excavator | T | 20T-30T | 30T-40T | Hydraulic system/pump station | |||||||||
| Max.Thrust | 300KN | Max.Cylinder required | 20L/min | Machinery Tonnage | ≥20T | Location pinΦ35 | |||||||
| Max.Cylinder Trip | 300mm | Chisel diameter | 110mm | Singlemodule weight | 335KG | ||||||||
| Max.Cylinder Pressure | 300MPa | Max.Hoist Capacity | ≤500mm | Singlemodulesize | 1015*865*340mm | ||||||||
What Is the Difference Between Modular Round and Square Pile Breaker Types?
Frame designs and modular links dictate working pile diameter ranges and site application fit.

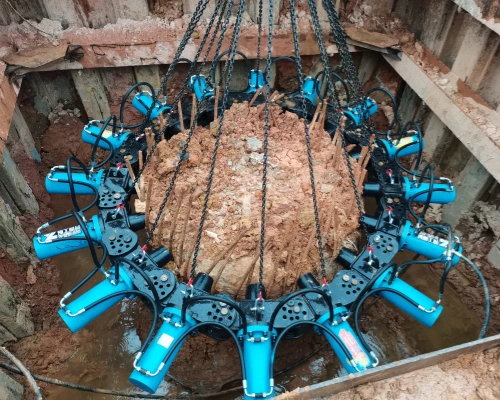

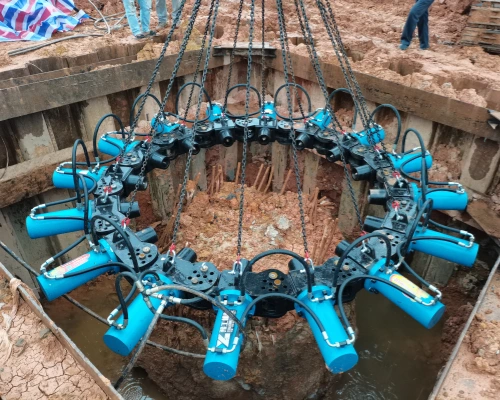

- Modular Round Pile Breaker: Built with interlinked circular modules. This pile breaker setup lets operators add or remove link blocks to adjust inner diameter fast, cleanly cracking round piles from 300 mm up to 2000 mm.
- Square Pile Breaker: Engineered for precast square piles using 4-way heavy hydraulic cylinders. Equal force from four sides cuts square sections from 300 mm to 600 mm with flat, clean edges.
On busy job sites, deep foundation crews run several fleet tools together. After clearing pile tops, a crusher bucket turns concrete waste into gravel fill. When clearing site obstacles, a hydraulic concrete pulverizer crushes old concrete slabs fast. To clear surface roots, use an excavator stump shear. For breaking hard rock ledges, mount a hydraulic breaker, while a high-frequency vibrating ripper cracks tough weathered rock fast.
💡 Field Tip: Match module count strictly to pile size. Using too many or too few modules causes uneven cylinder push and bends internal steel rebar.
How to Match a Pile Breaker to Excavator or Power Unit Specs?

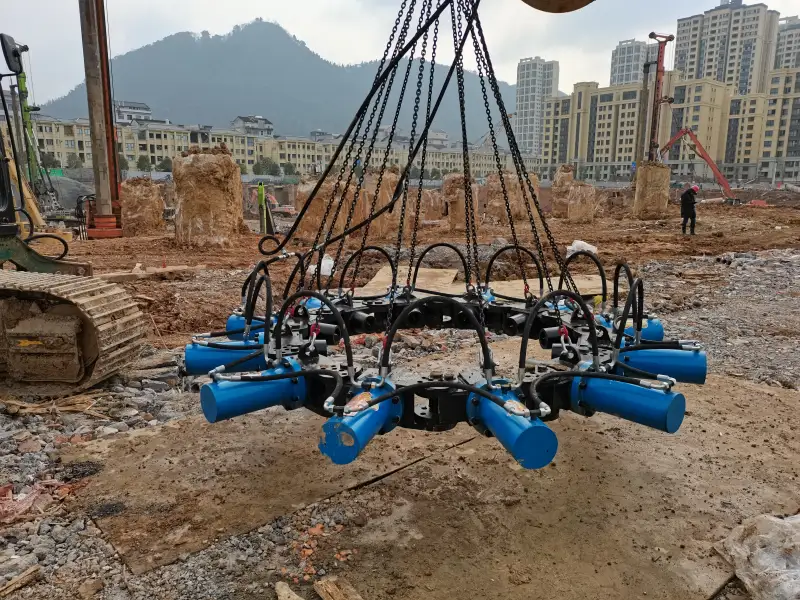

You can mount a pile cutter on an excavator arm or drive it using an independent hydraulic power pack.
- Small Module Sets (3 – 6 Links): Fit 300-800 mm pile sizes. They need 25-60 L/min hydraulic flow at 25-30 MPa pressure, easily powered by 15-ton excavators.
- Medium Module Sets (7 – 10 Links): Handle 800-1400 mm pile sizes. They demand 60-100 L/min flow, requiring a 20 to 30-ton excavator for solid oil supply.
- Heavy Large Diameter Sets (11 – 14 Links): Built for 1400-2000 mm bridge or railway piles. They require 100-140 L/min flow and work best with dedicated hydraulic power packs.
Where Does a Pile Breaker Deliver the Highest Job Site Output?
- High-Speed Rail & Bridge Foundations: Trim thousands of large cast-in-place pile heads quickly without touching main steel rebar.
- Port & Harbor Marine Piling: Pair with cranes or excavators for tough marine and riverbank pile trimming jobs.
- Commercial & Industrial Building Sites: Crush dense grids of precast square piles or high-strength prestressed concrete (PHC) pipe piles.
Field Case: How an Indonesian Bridge Contractor Cut Project Time by 60%?
Aris, a contractor in Indonesia, took on a coastal highway bridge project. His site contained over 600 cast-in-place concrete piles (1200 mm diameter) that needed pile head removal. Using manual jackhammers was too slow and constantly nicked rebar.
We supplied a 10-module heavy-duty pile breaker for excavator mounting on his 24-ton machine.
The job site results were immediate:
- Pile cutting output jumped from 2 piles per man daily to over 40 piles per day with one machine setup.
- The pile head removal phase finished 60% ahead of schedule.
- Cuts remained perfectly level, keeping rebar 100% undamaged to pass quality checks easily.

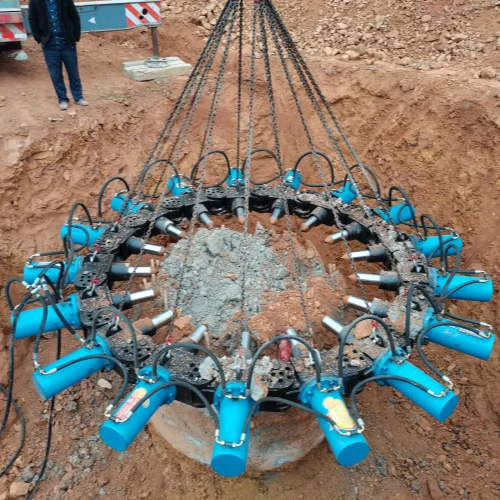

💡 Field Tip: After crushing the concrete core, lift the excavator boom slowly upward so the tool hoists the broken concrete block clean off the pile.
Frequently Asked Questions (Q&A)
❓ Will the pile breaker crush internal steel rebar during operation?
No. The alloy chisels on a pile breaker are shaped to crush concrete under point pressure. Force breaks the brittle concrete matrix without shearing or pulling steel rebar.
❓ Can one pile breaker set adjust to fit different pile sizes?
Yes. The modular design lets operators add or drop module links fast to switch between various round pile sizes using one tool set.
❓ How do operators replace worn chisel points on site?
Chisels pin into cylinder front heads. Knock out the locking pin with a drift punch to swap chisel bits on site within minutes.
Ready to Boost Your Piling Project Efficiency?
If you need fast, rebar-safe, and durable pile cutting tools, YG Machinery provides direct factory-built equipment for your site. From every pile breaker setup to a complete range of excavator attachments, we support your projects worldwide.
Contact the YG Machinery team today to get your custom model recommendation and quote!
