Choosing the right plastic recycling line is the key to making a profit in today’s plastic waste market. Many buyers only focus on the initial price tag. They often overlook material differences, flake purity standards, and daily maintenance costs.
As a senior equipment engineer at YG Machinery, I built this practical buying guide. I want to help you avoid common traps and set up a smooth recycling workshop.
Plastic Recycling Line Parameter
| Capacity | 300KG | 500KG | 1000KG | 2000KG |
| Workshop(L*W*H) | 40 m*7.5 m*6 m | 42 m*10 m*6 m | 70 m*12 m*6 m | 80 m*15 m*6 m |
| Needed worker | 3-4 persons | 5-6persons | 7-8persons | 10-12persons |
| Water supply (recycle use) | 2-3ton/h | 3-5ton/h | 7-10ton/h | 10-15ton/h |
| Final product quality | Moisture: max 1% scraps size: 10-18 mm Metal content: max.20ppm Total impurity: 100-320ppm | |||
What Is a Plastic Recycling Line and What Are Its Core Steps?
A standard plastic recycling line is an automated system. It turns plastic waste into high-quality recycled raw materials. Its core process includes debaling, crushing, washing, sorting, drying, and final pelletizing.
Line setups change a lot based on your input material. For instance, PET bottles need a specific label remover and a hot washing tank. On the other hand, farm films or shopping bags rely more on a heavy-duty shredder and a squeezer machine.
Engineer’s Pro Tip: Do not wash mixed plastics together. Sort your waste before feeding it into the plastic wash line to extend blade life by over 40%.
What Are the Application Scenarios for a Plastic Recycling Line?
Recycled plastic granules have many uses across different industries. Choosing the right plastic recycling line configuration helps your output meet buyers’ real demands.

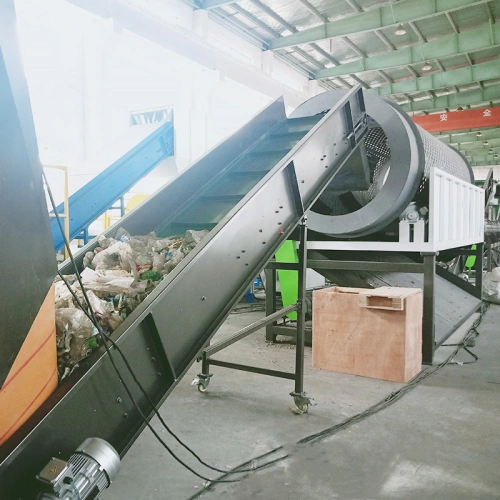

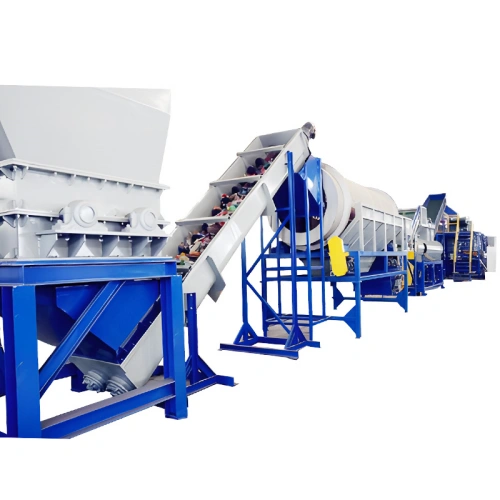

- PET Bottle Recycling: Used PET bottles become clean PET flakes after label removing, crushing, and hot washing. These flakes make packing belts and polyester staple fiber. High-purity flakes can even reach food-grade bottle-to-bottle standards.

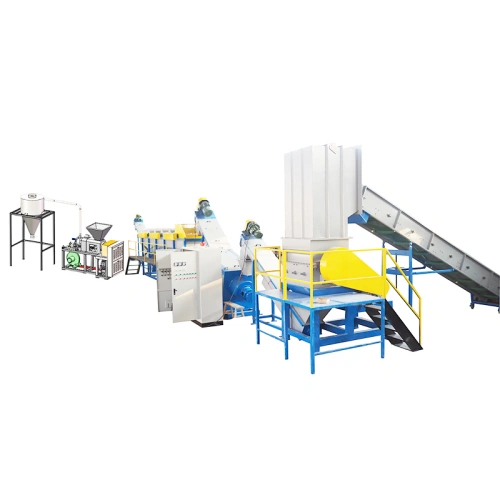

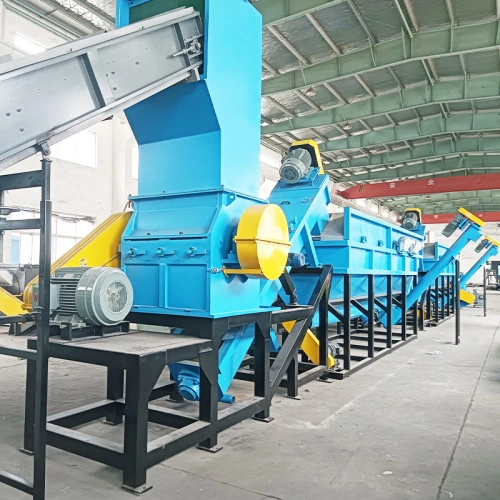

- PP/PE Film and Woven Bag Reuse: Farm films, factory plastic wraps, and woven bags go through a plastic granulating line. The extruded pellets are used to make trash bags, farm pipes, or plastic pallets.
- HDPE/PP Rigid Container Processing: Hard plastics like detergent bottles, milk jugs, and buckets are washed to remove oil. Then, they are molded back into industrial drums or crates.
Engineer’s Pro Tip: If you want to sell high-price flakes, add weak alkaline cleaning powder during hot washing. Avoid using pure caustic soda alone, which turns flakes yellow.
Key Factors Affecting the Cost and ROI of Your Plastic Recycling Line
The price of a plastic recycling line ranges from $30,000 to over $200,000. Knowing the core technical factors helps you spend your budget wisely.
First, output capacity per hour. Hourly capacity ranges from 300 kg, 500 kg, to over 1000 kg. Machine sizes and power needs change accordingly. Integrated washing and pelletizing lines over 1 ton per hour usually cost more than $100,000.
Second, flake purity and dewatering efficiency. For PET flakes, cold-washed flakes need impurities under 0.03%. Premium hot-washed flakes require PVC content below 0.005%. Combining a centrifugal dewatering machine with a hot air dryer drops moisture levels below 1%.
Third, automated sorting and smart controls. Adding bale breakers, optical color sorters, and electrostatic separators increases initial costs. However, it saves 3 to 5 workers and boosts final product prices.
Real Client Case: Improving PET Flake Quality in the Middle East
Last year, a plant manager from Saudi Arabia reached out to us. He bought local PET drink bottles. However, his old plastic wash line could not remove PVC labels or cap oil effectively. This caused low flake prices and frequent buyer rejections.
After analyzing his situation, we redesigned his plastic recycling line pre-treatment section. We added a double-shaft bale breaker, a dry-type label remover, and a high-temperature hot washing tank with a dewatering unit.
After three months of running, his plant achieved over 98% label removal. The PVC content dropped below 0.01%. He sold clean flakes to large local textile mills, increasing his profit by nearly $120 per ton. He recovered his equipment investment in six months.
Tip: Dirty materials with heavy oil or labels will not get clean in cold water alone. Adding a hot washer is the fastest way to raise flake prices.
Frequently Asked Questions (FAQ)
Not entirely. Front-end debaling and basic washing logic are similar. However, soft films need dedicated film crushers and squeezing pelletizers. PET bottles require label removers and sink-float tanks. Still, both lines can share a rear PET pelletizing or extrusion setup.
Power consumption depends on line capacity. A 500 kg/h line usually needs 120 kW to 180 kW total installed power. For water, we strongly advise a water recycling filtration system. It reuses over 85% of washing water, saving big operating costs.

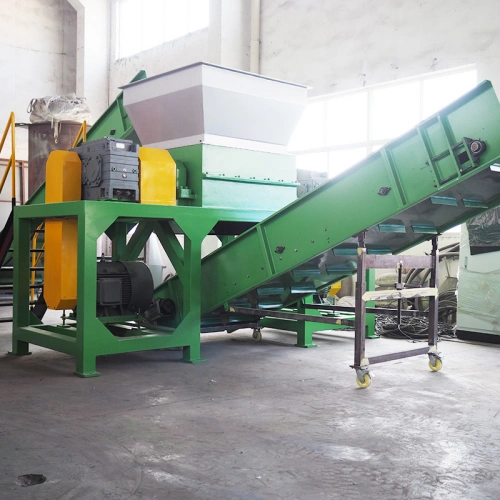

A single-shaft shredder handles hard, thick plastic blocks like pipes or appliance shells. A double-shaft shredder offers higher cutting power and grip. It works best for bundled plastic films, woven bags, or high-density bottle bales.
Final Words: How to Set Up Your Plastic Recycling Line
Investing in a plastic recycling line is not just buying a machine. It is building a custom engineering solution for your raw materials and target market. Knowing your plastic type, target output, and budget forms the foundation for success.
If you plan to build a plastic recycling plant or upgrade your current plastic granulating line, YG Machinery is ready to help. We offer free technical advice and workshop layout design.
