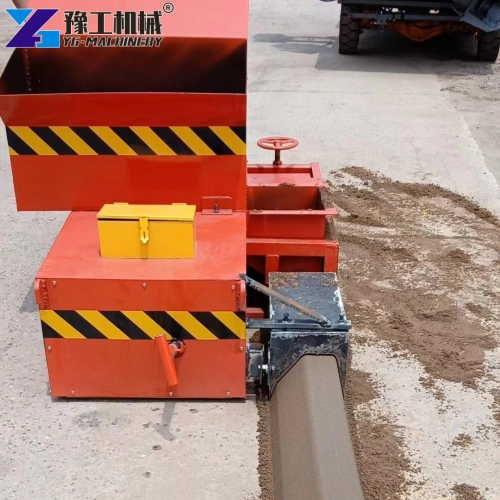

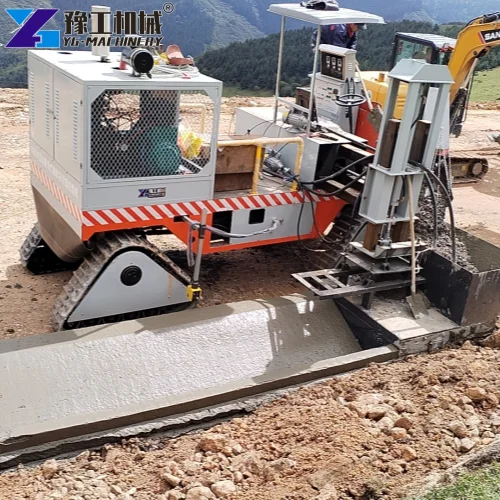

A concrete curb paver machine lays 300 to 500 meters per hour. This speed is over ten times faster than manual work. It turns wet concrete into finished curbs without the need for fixed forms.
In today’s market, time is money. Using this equipment reduces your reliance on skilled labor. One machine usually requires only 3 to 4 operators to run efficiently.

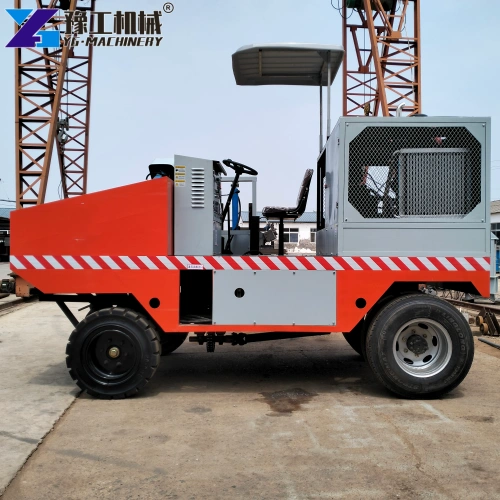

Concrete Curb Paver Machine Parameter
| Model | YG-KB20 | YG-KB30 |
| Steering system | Automatic steering system | Automatic steering system |
| Engine | “65kw,AC380V | 65kw |
| Curb size | Height≤600mm，width≤2000mm | Height≤1100mm，width≤2000mm |
| Forming method | High frequency vibrator | |
| Attached vibration motor | ||
| Minimum turning radius | 6800mm | |
| Paving speed | 1—7m/min adjustable | 1—10m/min adjustable |
| Hopper volume | 1m³ | |
| Machine size | 5000*2400*2800mm | 5200*2400*2800mm |
| Weight | 6000kg | High-frequency vibrator |
Core Selling Points of a Concrete Curb Paver Machine

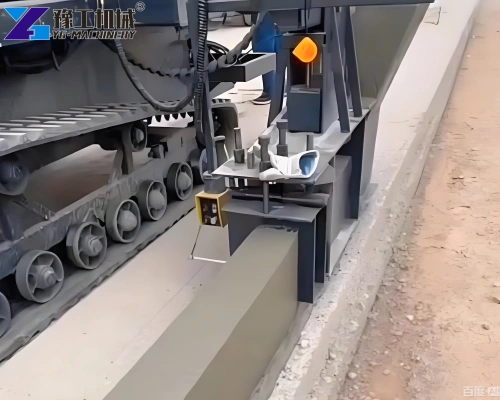

This concrete curb machine uses automatic leveling technology. It adjusts height and direction based on string lines or laser sensors. Such precision ensures accurate drainage slopes every time.
Compared to a traditional roadside curb slipform machine, modern pavers are more flexible. They handle tighter turning radii. This makes them perfect for narrow urban streets and parking lot edges.
High-Precision Slipform Technology and Benefits

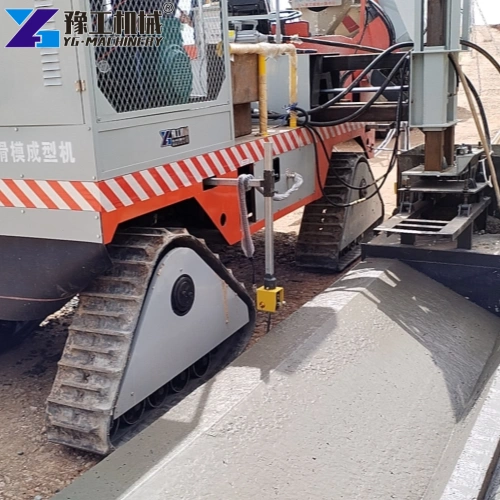

A high-performance concrete curb slipform machine ensures the structural integrity of the curb. High-frequency vibration removes air pockets inside the concrete. The result is a high-density, long-lasting curb.
- Auto-Sensors: Real-time monitoring keeps line deviation within ±2mm.
- Molds Variety: Over 100 different mold shapes can be customized for clients.
- Continuous Flow: Paving continues as long as the concrete supply stays steady.
Pro Tip: Always dampen the subgrade before you start. This prevents the ground from sucking water out of your concrete, which stops cracks from forming at the base.

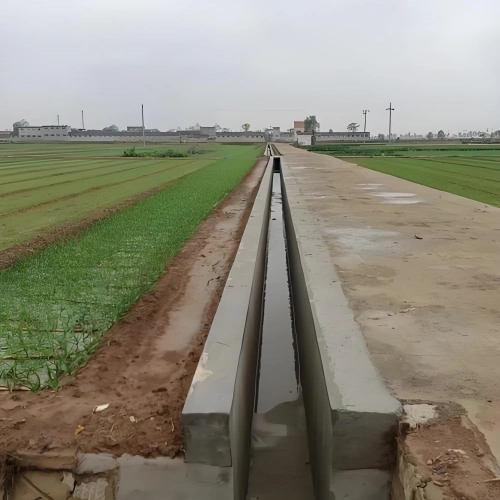

Concrete Curb Paver Machine Application Fields: More Than Just Highways
The use of a concrete curb paver machine is vast. Across different project types, it shows a very high Return on Investment (ROI).

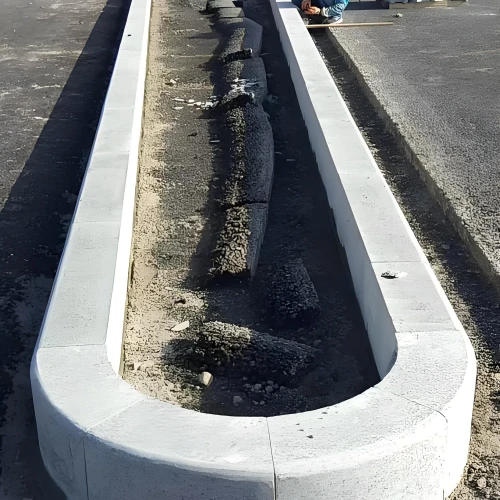

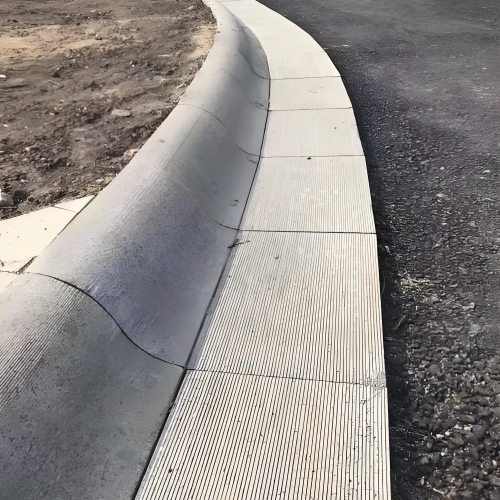

- Municipal Roads: Quick installation of road medians and curbs for city streets.
- Parking Lots: Paving complex curved curbs around commercial centers.

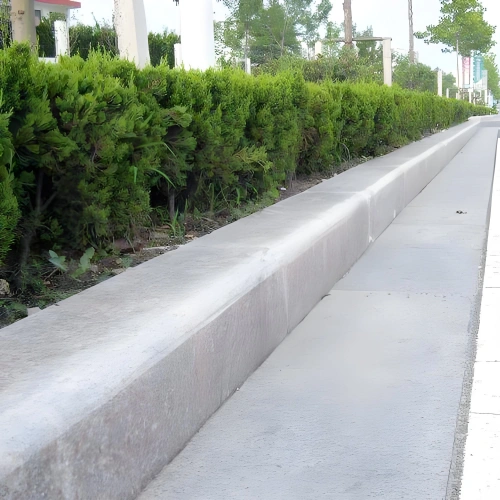

- Landscaping: Creating wavy or decorative curbs for parks.
- Airports: Paving high-strength drains for runways that face heavy pressure.
Success Case: The “Speed Miracle” in a Brazilian Project
Lucas, a contractor from Brazil, managed a 50km road project in an industrial park. At first, he used manual molds. Progress stalled because of low worker efficiency and inconsistent quality.
Lucas bought our concrete curb paver machine. He finished three months of work in just 20 days. He told us the machine paid for itself by the end of that first project.
How to Maintain Your Curbing Equipment?
A long-lasting concrete curb machine needs careful care. You must wash the augers and molds immediately after paving. Once concrete hardens, cleaning it will damage the machine’s surface.
- Lubrication: Grease key bearings every 8 hours of operation.
- Sensor Check: Keep the line sensors free of dust and debris.
- Wear Parts: Replace auger blades when wear exceeds 10% to keep pressure high.
Concrete Curb Paver Machine FAQ
Yes. It has strong hydraulic power to handle slopes of 10% to 15%.
Usually, a 6-8 cubic meter mixer truck is ideal for a continuous supply.
Very simple. Two workers can swap a mold in under 30 minutes.
