Choosing a cost-effective roll forming machine is critical for factory expansion or contract operations in today’s international construction and sheet metal processing markets. Machine quality varies across suppliers, and many buyers experience issues like sheet alignment errors, roller shaft deformation, or hydraulic overheating. Drawing from our experience in construction machinery exports, this guide covers the practical technical details and buying considerations you need.
Roll Forming Machine Parameter
| Material | Applicable material | GI(Galvanized Steel Sheet)/PPGI |
| Material thickness | 0.12-0.5mm | |
| With yield strength | 235-345-550Mpa Yield Strength | |
| Machine | Baseframe | H400/450 type steel |
| Roller material | 45# steel | |
| Hardness | Heat treatment to HRC58-62 degrees | |
| Roller station | 22steps to form | |
| Shaft diameter | 80mm/ 75mm | |
| Machine size | 10000*2000*2000mm | |
| Machine weight | 10000 | |
| Machine color | 2.Blue(RAL5015)+ orange (RAL2004), as per the seller factory color standard | |
| Working speed | 15m/min | |
| Cutter | Hardness | Heat treatment to HRC58-62 degrees |
| Cutting tolerance | ±1mm | |
| Material | Cr12MoV(= Z200C12 with at least one million times of cutting life) | |
| Operate | By PLC | |
| Power | Driving way | Gear/Sprocket transmission, |
| Main motor | 7.5KW | |
| Pump motor for cutter | 3.5kw | |
| Voltage | 220/380/415/480V- 60/50Hz/3Ph –should be confirmed | |
| PLC Control System | Inverter | Schneider Electric/DELTA (Taiwan brand) |
| Touch screen | WEINVIEW(Taiwan brand) | |
| Encoder | KOYO (Japan brand) or OMRON (Japan brand | |
| Cut-to-length tolerance | ±1mm | |
| Control voltage | 24V | |
| Automatic Stacker and Printer | Options | |
What Are the Core Application Scenarios for Roll Forming Machines?
A roll forming machine serves industrial plants, commercial buildings, agricultural storage, and road infrastructure. Selecting the proper model can increase job-site installation efficiency by over 30%.
- Roofing and Wall Systems: Machines with feeding widths from 914 mm to 1250 mm produce single-layer color steel or glazed tiles for industrial and residential shelters.
- Insulated Sandwich Panels: Integrated with PU, EPS, or rockwool production lines, these machines make fire-retardant wall panels.
- Structural Purlins and Keels: CZ purlin machines and light steel keel formers produce load-bearing purlins and interior wall frames with quick setup times.
- Transportation Infrastructure: Guardrail formers and gutter machines handle highway safety barriers and high-capacity drainage channels.
Pro Tip: If your job site is in a high-humidity or coastal area, request Cr12 steel rollers with hard chrome plating to extend rust resistance and wear life.
How to Calculate True Procurement Costs and Equipment ROI?
Direct factory prices for basic single-layer models range from $2,600 to $4,500, with final costs determined by freight, import duties, and routine maintenance.
Evaluating total investment requires looking beyond the initial machine quote:
- Standard Configuration: Check whether the unit includes an automatic decoiler, PLC control panel, and run-out tables.
- Forming Speed and Output: Standard lines run at 0–15 m/min, while specialized profiles or high-speed units reach 20 m/min.
- Changeover Downtime: Automatic interchangeable CZ form rolling machine units cut profile changeover times by up to 70% compared to manual adjustments.

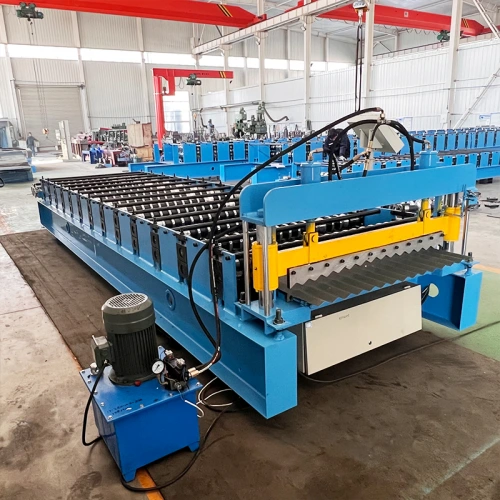

Key Technical Parameters When Choosing a Roofing Sheet Machine
Raw material thickness ranges, yield strengths, and the number of roller stations dictate profile accuracy and long-term stability for any roofing sheet machine.
- Feeding Width and Sheet Thickness: Standard prepainted or galvanized steel sheets range between 0.2 mm and 0.8 mm, whereas structural floor decking profiles require 1.5 mm to 3.0 mm.
- Roller Stations and Shaft Diameter: Equipment built with 16 to 20 roller stations prevents surface scratching and profile distortion. Shaft diameters should measure at least 70 mm.
- Control Interface: Ensure the PLC touchscreen supports multi-language operation (such as English and Spanish) for quick local onboarding.
Overseas Case Study: Equipment Upgrade for a Southeast Asian Contractor
A construction contractor in Southeast Asia upgraded its production line while building a large logistics park.
- Challenge: Their existing second-hand equipment yielded loose profile laps, leading to water seepage during heavy rain. Slow profile changes delayed project timelines.
- Solution: The company deployed a YG Machinery self-lock roof sheet making machine fitted with a Delta PLC system and hydraulic post-cutting assemblies.
- Results: The self-locking design eliminated screw penetrations, resolving leakage issues. Operating at a steady 15 m/min, the machine helped complete the roofing phase 12 days ahead of schedule.
Pro Tip: Self-locking profiles demand precise feeding tolerances. Keep the entry guide bench leveled to prevent locking seam misalignment.
Frequently Asked Questions

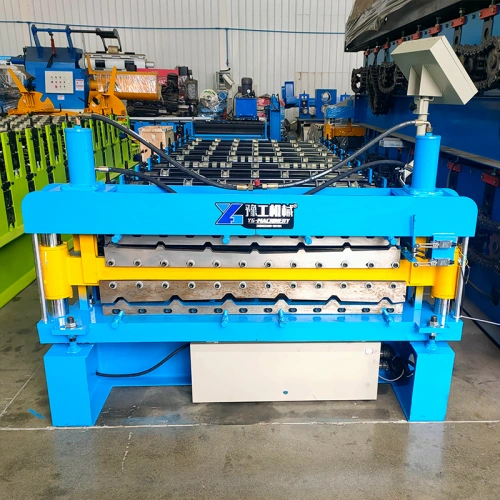

If factory floor space is limited and you need two different profiles, a double-layer machine (like an 840/900 combo) saves space. If you need to run both profiles simultaneously, buy two single-layer machines.
Q2: A2: Pricing is mainly driven by base frame steel sizes (such as 350H beam steel), roller material choices (45# steel vs. Gr15/Cr12), PLC brand selection, and hydraulic motor power ratings.
Manufacturers run test trials and label electrical wiring prior to shipment. Modern PLC systems allow operational setup and troubleshooting through video guidance.
Pro Tip: Always send a sample of your locally sourced steel coil to the machine manufacturer for test runs, as material hardness and spring-back rates vary by mill.
Request Your Customized Roll Forming Solution
Whether you need single-layer roof formers, CZ purlin machines, or complete sandwich panel lines, YG Machinery builds equipment to your profile specifications. Send us your profile drawing, thickness requirements, and target output, and our engineering team will provide a technical quote within 24 hours.
