An inline flexo printing machine integrates multiple printing stations in a straight horizontal line. This setup allows high-speed printing and fast multi-color inline finishing. Selecting the right inline flexo printing machine depends on your web width, substrate thickness, and required inline functions. Compared to central impression units, horizontal inline setups cost 25% less and offer better modular flexibility. Let us break down the essential practical knowledge for your plant.
Why Select an Inline Flexo Printing Machine for Your Factory?
An inline flexo printing machine handles multiple operations in a single pass. You can combine printing, rotary die-cutting, slitting, and laminating on one continuous line. Line speeds usually range from 100 to 200 m/min. This design reduces manual labor and lowers job changeover times.
What Industry Applications Work Best with an Inline Flexo Printing Machine?
An inline flexo printing machine adapts easily to various packaging and labeling substrates.

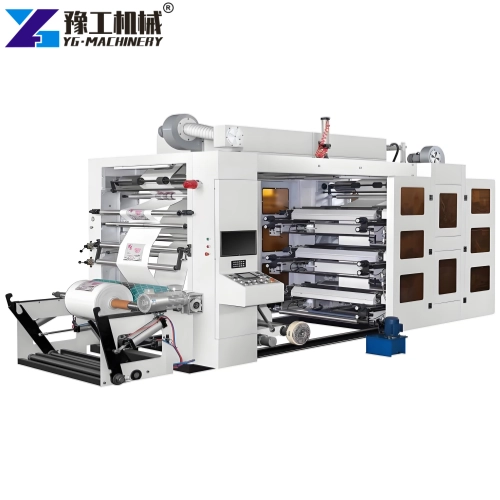

- Labels and Stickers: It performs exceptionally as a flexo label printing machine for pressure-sensitive stickers, tags, and clear film labels.
- Folding Cartons: It handles heavy paperboard, milk cartons, and medicine boxes with inline creasing and die-cutting.
- Flexible Packaging: It processes paper bags, aluminum foil, and light packaging films smoothly.
- Specialty Papers: It prints lottery tickets, boarding passes, and continuous forms at steady speeds.
💡 Pro Tip: If you process light films, install an active tension control system. It prevents material stretching and ink smudging during high-speed runs.
Inline vs Stack vs CI vs Digital: Which Machine Fits Your Needs?
Choosing the right press depends on your specific substrate and volume goals:
- Inline Flexo Printing Machine: Runs at 100–200 m/min with ±0.1mm accuracy. Needs a large horizontal space. Fits labels, folding cartons, and inline die-cutting.
- Stack Flexo Printing Machine: Runs at 40–150 m/min with ±0.15mm accuracy. Takes up very little floor space. Fits heavy films, paper bags, and PP woven sacks.
- CI Flexo Printing Machine: Runs at 200–400 m/min with ±0.05mm accuracy. Requires high investment. Best for thin flexible film and food pouches.
- Digital Printing Machine: Runs at 10–50 m/min with zero setup time. Features low setup costs. Perfect for short runs and custom labels.
If you need fast inline finishing for labels or paperboard, an inline flexo printing machine for sale is your best investment.
Case Study: How a Polish Plant Cut Waste by 30%
David runs a packaging plant in Poland. His old press required separate die-cutting after printing. This two-step process led to a 12% material waste rate and slow order deliveries.
YG Machinery supplied a 6-color inline flexo printing machine equipped with an inline rotary die-cutter, chambered doctor blades, and web guiding.
Setup time dropped from 60 minutes to 18 minutes. Registration accuracy stayed within ±0.1mm. Material waste fell below 3%. Production efficiency increased by 30% in six months.
💡 Pro Tip: Ask for quick-change magnetic cylinders. They will save your operators hours during daily die-cutting setups.
Key Buying Checklist for an Inline Flexo Printing Machine
Always check these four critical technical specs before placing an order:
- Anilox Roller LPI: Pick 300 to 500 LPI for solids. Choose 600 to 1000 LPI for fine halftones and sharp text.
- Chambered Doctor Blade: Enclosed ink chambers prevent ink splashes and cut solvent evaporation.
- Drying Capacity: Confirm hot-air and UV drying combinations for fast ink curing at high speeds.
- Inline Options: Add rotary die-cutting, cold foiling, or slitting units to expand your service options.
FAQ: Common Questions About Inline Flexo Printing Machines
Each color station operates independently along a horizontal frame. Web tension controls keep the material aligned as it passes through each unit.
Yes, modular inline units allow easy expansion. You can add extra color stations or finishing tools as your business grows.
An inline flexo press provides built-in converting options like slitting and die-cutting in one pass, making it faster for finished tags.
