Many sites face dust, odor, and large-area disinfection challenges. A high-quality water mist cannon gives a simple and stable way to solve these issues. It creates fine mist, covers wide areas, and works in both industrial and municipal projects. This makes it one of the most trusted tools for dust management today.
Parameters of Water Mist Cannon:
| Model | YG-30 | YG-40 | YG-50 | YG-60 | YG-100 |
| Horizontal Range | 30m | 40m | 50m | 60m | 100m |
| Fog Size | 40-200μm | 40-200μm | 40-200μm | 40-200μm | 30-200μm |
| Fan Diameter | 500mm | 500mm | 700mm | 700mm | 1200mm |
| Fan Length | 1.25m | 1.5m | 2.1m | 2.1m | 2.55m |
| Voltage | 380V | 380V | 380V | 380V | 380V |
| Fan Power | 3kw | 5.5kw | 15kw | 18.5kw | 55kw |
| Water Pump Power | 3kw | 3kw | 5.5kw | 5.5kw | 11kw |
| Dimension | 1.35*1*1.6m | 1.65*1*1.75m | 1.8*1.2*2.1m | 1.8*1.2*2.2m | 2.7*2*2.3m |
Water Mist Cannon Breakdown and Technical Advantages
Core Features and Working Principle

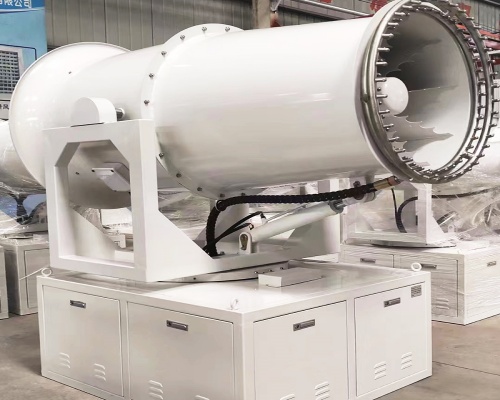

The water mist cannon uses a high-pressure plunger pump to push water into stainless-steel nozzles. The fast water flow hits the inner surface and breaks into tiny droplets. The fan pushes the mist long distances. The system includes a tank, pipes, pump, nozzle set, fan, generator, rotation system, control box, and remote control.
The machine supports custom voltage for different countries.
Key Advantages
- Fine mist with reduced water use
- Full-automatic rotation for easier operation
- Works with pesticide, disinfectant, or treated wastewater
- Optional stainless-steel or ceramic pumps for special liquids
- Optional filters for heavy dust environments
- Custom range from 30 m to over 100 m
Water Mist Cannon FAQ
Yes. A ceramic pump is used for standard disinfectants. A stainless-steel pump is used for chlorine-based liquids.
Industrial models use a frequency converter, have a higher range, and offer more stable pressure.
Yes. They are stainless steel. We include spare nozzles for sites with hard water.
Water Mist Cannon Applications and Case Study
Industry Applications
The water mist cannon is used for:
- City cleaning and municipal projects
- dust suppression system in mines
- quarry dust suppression
- Farming and forestry spraying
- Landfill odor control
- Steel plants, coal yards, and ports
- Public-area disinfection
- Construction site dust suppression cannon tasks
- fog cannon dust suppression system setups
- mist cannon dust suppression projects
Case Study
Mark from Australia needed better dust control for his quarry. Dust drifted to nearby communities and caused constant complaints. We offered a 100 m industrial water mist cannon with automatic rotation and a filter system.
After installation, dust levels dropped by more than 70%. Water use decreased, and worker safety improved. Mark reported smoother operations and fewer complaints from the community.
How to Increase Spray Coverage
Spray coverage depends on wind volume, nozzle count, pump stability, and wind direction. Full-automatic rotation helps avoid blind spots. Industrial models with frequency control keep air volume stable, so mist remains dense even at long range. Users should check pump pressure often to keep mist consistent.
How to Choose the Right Cannon Model
Range and flow are the main factors. Sites over 100 m should use industrial models. Corrosive liquids require stainless-steel or full-stainless-steel versions. Mobile jobs can use trailer-type units. Our team helps customers match the right pump, fan, and structure.
How to Keep the Cannon Stable in Daily Work
Users should clean filters often, inspect nozzles, and check fan bearings monthly. Sites with heavy dust should use industrial-grade filters. The pump voltage must match the local grid. Our remote support helps customers adjust settings anytime.
YG Machinery Strength and Service
YG Machinery provides:
- Pre-sale evaluation
- Custom range, pump type, and material options
- Fast spare parts supply
- Remote technical support
Customer Review:
“The YG unit works well and uses very little water. Support is fast and helpful. Great for our site.” —Daniel from Spain
Contact us now for a free quote.
Get your custom water mist cannon solution and improve your site safety today.
