Ending Traditional Oil Tank Cleaning Risks with the Oil Tank Cleaning Robot

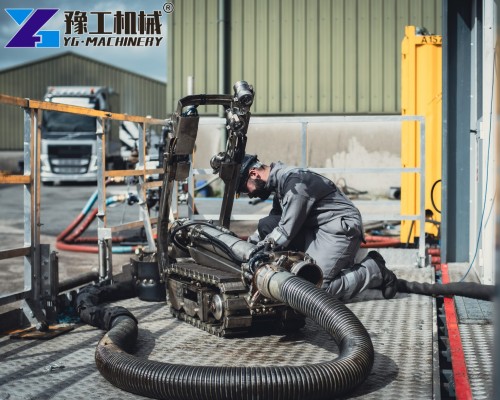

Are you tired of the high risks, long downtimes, and enormous costs associated with traditional tank cleaning? The petrochemical and energy sectors face major challenges in removing hazardous sludge from storage tanks. Conventional methods often require manual entry into confined spaces. This introduces severe safety and environmental hazards. We understand these pain points deeply. The professional-grade oil tank cleaning robot from YG Machinery is specifically engineered to solve these challenges. This advanced sludge cleaning robot provides a remote-controlled, explosion-proof dredging solution. It elevates safety to a new level. Our oil tank cleaning robot efficiently removes heavy oil sludge. It dramatically cuts your operating expenses and minimizes downtime.
Dredging Robot Parameter:
| Dimension: | 1220*890*520mm | Speed: | 2.5-4KM/h |
| Self Weight: | 120kg | Designed Load: | 100-300kg |
| Waterproof: | IP68 | Rated Torque: | 100-500 NM |
| Track Width: | 130mm | Reducer Efficiency: | 65-85% |
| Gear Ratio: | 1:10-1:40 | Motor Voltage: | 380ACV (customized as local voltage) |
| Motor: | 0.75-1.5KW*2 | Climbing Ability: | ≤30°(can climb stairs) |
| Motor Rated Speed: | 1500r/min | Maximum Span: | 620mm |
| Cable Control Distance: | Standard 50m, maximum 150m | Over-Obstacle Capacity: | 130mm |
| Maximum Underwater Depth: | 30m | Power Supply: | Generator or 380V power supply |
Technical Advantages of the YG Dredging Robot
Core Product Features and Functionality
How does our oil tank cleaning robot combine safety and efficiency? It is designed specifically for hazardous environments.
- Explosion-Proof Certification: The equipment features certified explosion-proof motors and an all-copper body. This ensures absolute safety in volatile and flammable environments.
- High-Solids Sludge Pump: The core pump technology handles high-viscosity, high-concentration oil sludge. This guarantees continuous and efficient removal.
- Remote Operation Platform: Operating as a robotic dredge, it uses remote control. Operators complete all tasks from a safe zone.
- Modular Design: The equipment adheres to the portable dredge concept. It is easy to disassemble for hassle-free transport and rapid deployment.
The Unique Edge of the Oil Tank Cleaning Robot
The YG oil tank cleaning robot offers transformative key advantages:
- Zero Confined Space Entry: Completely eliminates the risks associated with human entry for tank cleaning. This is the paramount safety benefit.
- Maximized Uptime: The cleaning process is significantly faster. Tanks return to service in a fraction of the time.
- Efficient Sludge Recovery: The equipment is designed to minimize water content in the sludge. This helps maximize the value of recovered oil materials.
- Precise Positioning and Cleaning: Integrated with HD cameras and sensors. Operators precisely target and remove areas with the heaviest sludge accumulation.
Oil Tank Cleaning Robot FAQ
Our oil tank cleaning robot is primarily used for sludge removal from the bottom of tanks after they have been emptied. However, in specific cases, it can perform bottom dredging while maintaining a certain liquid level. We advise consulting our experts before dredging. The equipment’s explosion-proof features make it safe and reliable in environments with volatile gases.

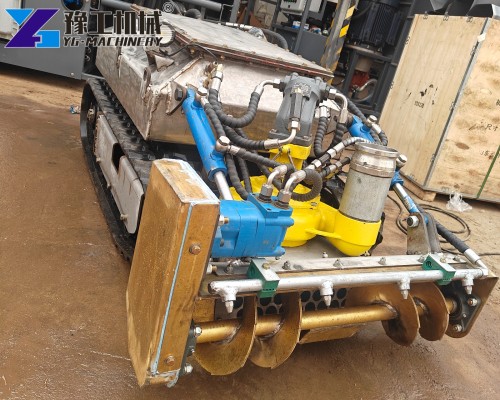

Our sludge cleaning robot is equipped with specialized cutter heads and agitation mechanisms. These units break down hardened or caked oil sludge before it is pumped. This ensures the material flows smoothly and continuously through the high-solids pump. This technique guarantees excellent sludge removal efficiency.
Absolutely. The technology is versatile. Operating as an industrial tank cleaning robot, it is also suitable for other industrial vessels. For example, it can be used for large chemical storage vessels, settling basins, or sumps. While we offer a specialized sewer cleaning robot, this machine can handle sludge removal at the entrance of large-diameter industrial pipes.
Our oil tank cleaning robot puts safety first. First, it is entirely remote-controlled, eliminating the need for operators to enter the hazardous tank interior. Second, we use the highest-grade explosion-proof motors and components. This eliminates the risk of sparks and explosion. The unit features an all-copper body and anti-static design. These measures strictly comply with international oil industry safety standards.
Recovering valuable hydrocarbons from storage tanks is a key customer goal. As a highly efficient industrial tank cleaning robot, our machine focuses on reducing water and impurity content in the sludge. The high-solids pump design ensures that the material extracted has a high concentration of solids. This means the oil sludge recovered by the customer can be more efficiently separated and reprocessed. This not only cleans the tank but also helps customers realize additional oil sludge recovery value.
Wide Applications and Industry Case Study
Diverse Application Scenarios Highlighting the Oil Tank Cleaning Robot Value
The oil tank cleaning robot is an essential tool in these industries:
- Petroleum Refining: Cleaning waxy materials and sludge from crude oil, gasoline, and diesel storage tank bottoms.
- Chemical Storage & Transport: Removing high-viscosity sediments from large chemical and solvent storage tanks.
- Environmental & Energy: Cleaning oil residue pits at fuel power plants and biofuel storage facilities.
- Marine Ports: Maintenance and cleaning of sludge from ballast tanks of bulk carriers and oil tankers.
Success Story: Saudi Aramco Storage Tank Maintenance
Fahad, a manager at a major oil storage facility in Saudi Arabia, faced a challenge. A critical crude oil storage tank needed maintenance. Due to the toxicity and flammability of the oil sludge, contractor safety costs were prohibitively high. Fahad acquired our oil tank cleaning robot. Thanks to its explosion-proof dredging certification and robotic dredge capabilities, cleaning started quickly without risking worker safety. Our sludge cleaning robot removed 95% of the tank bottom sediment in just 15 days. Fahad’s company avoided over 30 days of potential downtime, achieving substantial cost savings.
Quality Service Assurance and Expert Support
YG Machinery is dedicated to providing long-term support for your oil tank cleaning robot. We understand the importance of equipment in demanding environments. We offer detailed pre-sales consultation and customized cleaning proposals. Our after-sales service includes global technical support, rapid parts supply, and maintenance training for explosion-proof equipment. We ensure your investment continues to create value.
Customer Testimonial
“We were looking for a safe and highly efficient sludge cleaning robot. The YG unit offered genuine explosion-proof capabilities, eliminating our safety concerns. Its performance was better than any contractor we previously used. It’s a smart investment.” — Mark L., Refinery Maintenance Supervisor, USA.
Stop letting high-risk and high-cost tank cleaning drag down your business. Choose the safe, efficient, explosion-proof dredging solution with the oil tank cleaning robot.
Contact a YG Machinery expert now for your exclusive oil tank cleaning proposal and free quote!
