In today’s construction world, tackling structure modification and reinforcement projects comes with its own set of challenges, particularly when it comes to precision cutting and structural non-destruction. Traditional demolition techniques, like hammering and blasting, can really wreak havoc, causing significant vibration damage to nearby structures. That’s where YG Machinery steps in with their high-performance hydraulic wall saw. This professional-grade equipment is tailor-made for cutting through rebar concrete walls, brick walls, or stone. With its diamond blade, it delivers one-time forming precision cutting that’s hard to beat. Our wall saw machine is perfect for those larger wall cutting jobs, whether you’re making door openings, windows, or elevator shafts.
Technical Parameter of Hydraulic Wall Saw:
| Hydraulic Oil Pump | Model | YG 600 | YG 700 |
| Max. power | 25KW | 30KW | |
| Motor cooling method | Air cooling | water cooling | |
| Rated voltage | 380V 50HZ | 380V-420V 50HZ-60HZ | |
| Pressure stages | 3 | 3 | |
| Max. operating pressure | 200bar/20Mpa | 210bar/21Mpa | |
| Oil flow rate | 30-80L/min | 40-100L/min | |
| Dimensions | 600mm*650mm*1050mm | 500mm*520mm*1100mm | |
| Weight | 220kg | 140kg | |
| WallSaw | Saw blade diameter range | 800-1400mm | 800-1600mm |
| Cutting depth | 620mm | 730mm | |
| Max. working pressure | 180bar/18Mpa | 200bar/20Mpa | |
| Max. oil flow rate | 100l/min | 100l/min | |
| Gearing | Gear | Gear | |
| Rotation speed | 450/950/1300Rpm | 450/850/1200Rpm | |
| Dimension | 400mm*420mm*400mm | 400mm*420mm*400mm | |
| Weight | 38kg | 39kg |
Hydraulic Wall Saw Deep Dive and Technical Advantages: The Excellence of the YG Hydraulic Wall Saw
Core Working Principle and Unique Technical Features

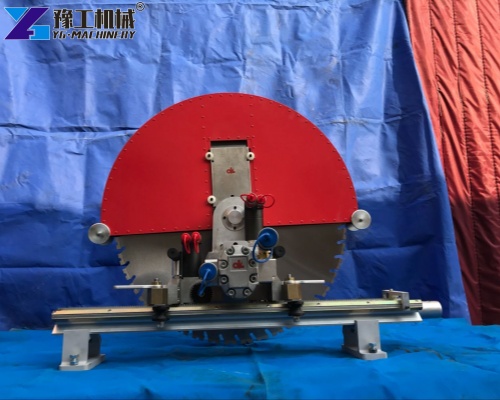

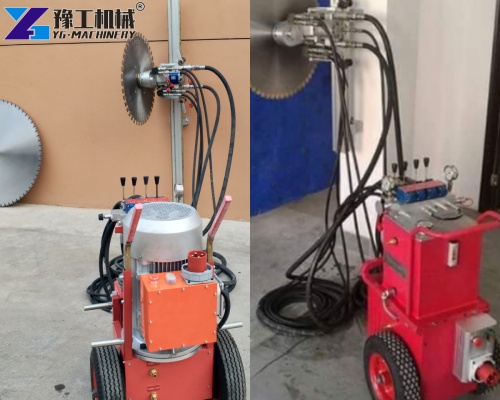

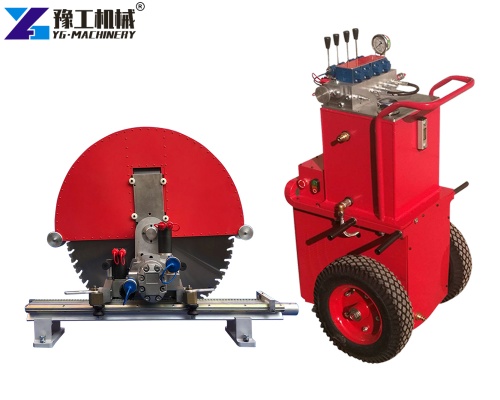

The YG hydraulic wall saw primarily consists of a power station and the saw head (hydraulic motor). The power station provides a stable and powerful hydraulic driving force. This force drives the diamond circular saw blade on the saw head at high speed. The blade performs track cutting along a pre-installed rail, ensuring absolute flatness and depth control of the cut path. This structural non-destructive cutting method completely avoids the impact damage caused by traditional hammering. It is irreplaceable for projects requiring precise and flat cutting surfaces.
Core Advantages: Why Choose the YG Concrete Wall Saw?
Choosing our concrete wall saw cutting machine means choosing high efficiency and maximum safety. Firstly, it easily cuts through rebar concrete up to one meter thick, achieving one-time forming. This significantly saves time, labor, and costs. Secondly, hydraulic driving ensures the cutting process is smooth, low-noise, and zero-vibration. This is vital for interior construction in old building modification, hospitals, or office complexes. Furthermore, our hydraulic wall saw can be paired with the diamond wire saw for concrete for deeper and irregular cutting tasks.
Hydraulic Wall Saw FAQ
The cutting depth of the hydraulic wall saw primarily depends on the diameter of the diamond blade. Generally, our machine can accommodate large-diameter blades, achieving a maximum cutting depth of around one meter. For deeper cuts, we recommend using a diamond wire saw for concrete.
No. Our concrete wall saw for sale uses water cooling during the cutting process. The water flow not only cools the blade but also washes the resulting concrete powder into slurry, drastically reducing Dust Pollution and keeping the work environment clean.
The hydraulic wall saw is primarily designed for flat surface cutting like walls. The machine’s track must be fixed to a flat surface to ensure Precision Cutting. For demolition involving irregular or non-flat structures, we recommend using our excavator rock saw or diamond wire saw.
Wide Range of Application Scenarios and Industry Case Study
Application Expansion: The Versatility of the Hydraulic Wall Saw

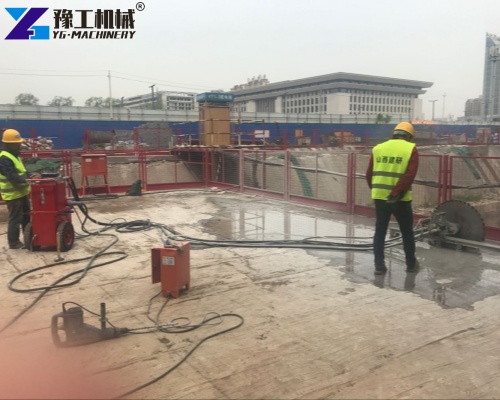

The application of the hydraulic wall saw is concentrated in the structural engineering sector of the construction industry. It is widely used for door and window openings in old building modifications, cutting slots in building reinforcement projects, precise openings for elevator shafts, and localised structural cutting on bridges or tunnels. As a wall saw machine, it has irreplaceable value in urban construction requiring static cutting.
Success Story: Old Building Modification in São Paulo, Brazil
Background: Ana, head of a construction company in são paulo, Brazil, was undertaking a complex commercial old building modification project. They needed to cut new ventilation and elevator passages precisely into load-bearing walls. The project demanded zero vibration to protect the structural integrity of the historical building.
Solution: Ana implemented YG Machinery’s hydraulic wall saw. Thanks to the machine’s hydraulic driving force and track cutting technology, her team easily and precisely completed large-scale cutting tasks across multiple wall layers.
Positive outcomes: Using our concrete wall saw, the project timeline was accelerated by 30% compared to traditional drilling and breaking methods. Furthermore, the building structure was verified as undamaged. Ana praised the YG hydraulic wall saw as the key equipment for achieving precision opening and non-destructive modification.
How Does the Hydraulic Wall Saw Ensure Precise Control of Cutting Depth?
You might ask: How do I ensure the cutting depth is consistent every time? The key to the hydraulic wall saw is its hydraulic control system. Operators can precisely adjust the blade’s feed rate and cutting depth using the control valves on the power station. Simultaneously, the saw head slides along a robust track, eliminating the uncertainty of handheld cutting. This track cutting guarantees a flat cutting surface and controls the cutting depth error within a minimal range.
Hydraulic Wall Saw vs. Diamond Wire Saw: How to Choose?
Customers often search: What is the difference between a hydraulic wall saw and a diamond wire saw for concrete, and which one should I choose? The choice depends on your cutting shape and depth. If your task is flat wall cutting for doors, windows, or square openings, and the depth is within one meter, the hydraulic wall saw is the best choice. If your task involves ultra-deep, extra-thick structures or requires cutting irregular, non-square objects (like piers, underwater piles), the more flexible diamond wire saw for concrete is the appropriate tool.
What is the Importance of Non-Destructive Cutting in Building Reinforcement Projects?
Why is structural non-destruction so important? In building reinforcement or old building modification, even minor vibrations caused to the existing structure can lead to secondary structural damage. Our hydraulic wall saw employs zero-vibration static cutting technology. This means that when cutting new openings, the building’s load-bearing capacity is not compromised. This non-destructive cutting ensures the reliability and longevity of the subsequent reinforcement work.
YG Machinery Strength, Service, and Building Trust
Quality Service Guarantee: Your Precision Cutting Specialist
Choosing YG Machinery means choosing a reliable wall cutting expert. We offer expert pre-sales consultation. We help you select the ideal hydraulic wall saw model for your precision cutting needs. Our services include customized blades, on-site or remote operational training, and comprehensive after-sales support. We ensure an ample supply of spare parts, especially diamond blades. This keeps your wall saw machine running efficiently at all times.
Customer Testimonial
“We used the YG hydraulic wall saw on a large Old Building Modification project in Saudi Arabia. Its cutting speed and precision were excellent, and there was no vibration. We successfully avoided the structural risks associated with traditional breaking tools.” – Mr. Khalid A., Operations Manager at a Saudi Construction Services Firm.
Stop letting traditional breaking methods compromise your structural safety. It is time to upgrade to the professional wall saw from YG Machinery.
Contact us now to customize your exclusive wall cutting solution and get a free quote for the concrete wall saw!
