When Mike Johnson’s glazing team was on the hunt for a dependable glass lifting machine, YG Machinery came through for them. In just three months, they experienced a remarkable 50% boost in efficiency and slashed their labor costs by 40%. Say goodbye to broken glass and missed deadlines—these are the kind of results that truly matter!
Glass Lifting Machine for Sale Parameter:
| Model Type | YG-LD-300 | YG-LD-400 | YG-LD-500 | YG-LD-600 | YG-LD-800 | |
| Load Capacity | 300kg(retract)150kg(extend) | 400kg(retract)200kg(extend) | 500kg(retract)250kg(extend) | 600kg(retract)300kg(extend) | 800kg(retract)400kg(extend) | |
| Lifting Height | 3500mm | 3500mm | 3700mm | 3700mm | 4500mm | |
| QTY of Suction Cap | 4pcs | 4pcs | 6pcs | 6pcs | 8pcs | |
| Rubber Suction Cap | 300mm | Ø300mm | Ø300mm | Ø300mm | Ø300mm | |
| Maintenance-free Battery | 2x12V/80AH | 2x12V/100AH | 2x12V/120AH | 2x12V/120AH | 2x12V/120AH | |
| Battery Charger | Smart Charger | Smart Charger | Smart Charger | Smart Charger | Smart Charger | |
| Drive motor | 24V/1200W | 24V/1200W | 24V/1200W | 24V/1200W | 24V/1200W | |
| Lifting Motor | 24V/2000W/6L | 24V/2000W/6L | 24V/2000W/6L | 24V/2000W/6L | 24V/2000W/12L | |
| Chassis L*W | 2660*810mm | 2660*810mm | 2800*810mm | 2800*810mm | 2800*810mm | |
| Driving Wheel | Ø250x80mm | Ø250x80mm | Ø300x100mm | Ø300x100mm | Ø300x125mm | |
| Packing Size(mm) | 2560*1030*1700 | 2560*1030*1700 | 2580*1050*1700 | 2580*1050*1700 | 3000*1250*2300 | |
| N.W/G.W | 1100/1150kg | 1280/1330kg | 1300/1350kg | 1400/1450kg | 1600/1650kg | |
| Loading Qty | 1x20GP/40GP: 6SETS/12SETS | |||||
| Movement | Automatic(4 kinds) | 1. The suction cup frame flips 180° electrically. 2. The support plate automatically retracts. 3. Hydraulic arm lifts electrically. 4. The base of the whole machine moves 100-150mm horizontally. | ||||
| Manual (2kinds) | 1. The suction cup holder can be manually rotated 90 degrees (electrically powered optional). 2. The suction cup holder can be manually rotated 360 degrees (electrically powered optional). | |||||
| Usages | Mainly used for the handling, movement, and installation of materials such as glass, marble, wood, iron plate, etc. | |||||
Meet Mike: A US Glazing Contractor’s Big Challenge
Mike Johnson has run a glazing business in Florida for 12 years. His team handles commercial curtain wall installations and large glass door projects. Last year, they took on a big job: a 15-story office building’s glass curtain wall. The problem? The glass panels were 3m x 2m, weighing up to 600kg. Manual lifting took 4 workers per panel, and accidents happened often. “We broke 3 glass panels in the first month—costing us $12,000,” Mike said. “We needed a better way.”
Project Background: Why a Glass Lifting Machine Was a Must
The office building project required 200 large glass panels. Mike’s team had only 4 months to finish the installation. Manual lifting was slow—just 2 panels per day. Workers were tired, and the risk of injury was high. “We couldn’t keep up with the timeline,” Mike explained. “We needed equipment that could lift heavy glass safely and quickly. That’s when we searched for ‘glass lifting machine for sale’ online.”
Why Mike Chose YG’s Glass Lifting Machine for Sale
Mike compared 3 suppliers, but YG stood out for three key reasons. First, the product specs fit his needs perfectly: the YG-LD-600 model with 600kg load capacity (300kg extended) and 3.7m lifting height. “It’s made for our 600kg glass panels,” Mike said. Second, YG offered a custom solution—adjusting the support legs to fit the building’s narrow construction site. Third, the service was responsive. YG’s team answered his questions within 2 hours and sent a detailed operation guide. “Their pre-sales help made me feel secure,” Mike added.
Product Performance: How It Solved Mike’s Pain Points

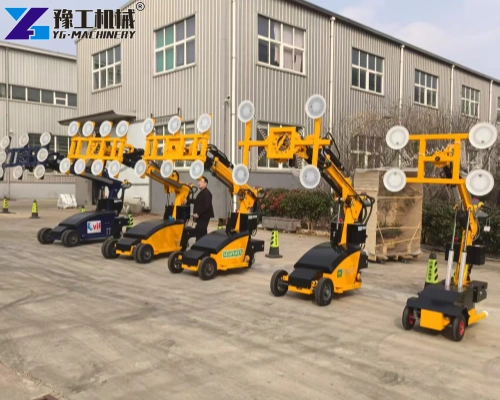

YG’s glass lifting machine for sale is built for safety and efficiency. It has 6 imported silicone suction cups that grip glass tightly—no slips. The suction cup frame rotates 360° and flips 180°, making installation precise. “We adjust the glass angle in seconds now,” Mike said. It also has a power failure protection system. If the power goes out, the vacuum holds for 30 minutes. “That’s crucial for outdoor work,” Mike noted. The glass sucker machine’s electric lift and drive saved time too—his team now installs 5 panels per day. Best of all, breakage dropped to zero. “No more wasted glass or money,” Mike smiled.
YG’s Support: Beyond Just Selling a Machine
YG didn’t stop after delivering the machine. When Mike’s team had an operation question, YG’s technical support offered a video call in 1 hour. “Their after-sales service is fast and reliable,” Mike said. “I never felt stuck with the equipment.”
Mike’s Feedback: “Best Investment for Our Business”
After 3 months of use, Mike’s team finished the project 2 weeks early. Labor costs fell by 40% (from 4 workers to 2 per panel). Total savings? Over $30,000—including less glass breakage and labor. “This glass lifting machine for sale is our best business decision,” Mike said. “It’s safe, easy to use, and saves us time. We’ll buy another for our next project.”
YG Glass Lifting Machines for Sale: Trusted Worldwide
YG’s glass lifting machine for sale isn’t just popular in the US. We’ve sold to over 50 countries, including Canada, Australia, Germany, France, the UK, Brazil, and the UAE. These markets need high-quality, safe glazing lifting equipment—and YG delivers. Our glass panel lifting equipment meets international safety standards, with durable aluminum frames and strong motors. It works for commercial projects, factory moves, and more.
Get Your Glass Lifting Machine for Sale Today
Are you tired of slow, unsafe glass handling? Do you want to cut costs and meet deadlines? YG’s glass lifting machine for sale (300-800kg load, 3.5-4.5m height) is your answer. We offer custom plans, fast US shipping, and 24/7 support. Contact us now via WhatsApp/WeChat/Phone: +86 138 3711 2713. Get your free quote and join thousands of happy clients!
