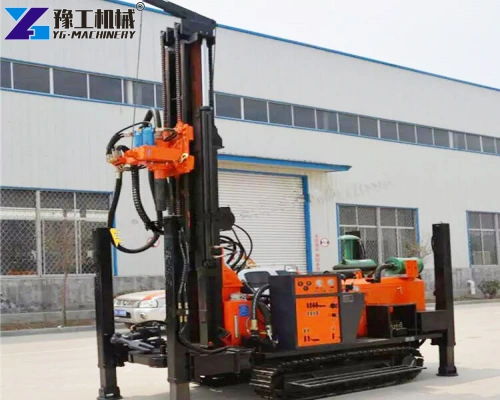

A deep water well drilling machine is specialized equipment crafted for extracting water from deep underground. It can reach depths greater than 20 meters, going as far as 800 meters or even more. YG’s deep water well drilling machine features a fully hydraulic control system, delivering a torque output ranging from 3200 to 11150 N.m, which allows it to tackle challenging geological conditions like hard rock, quicksand, and pebbles with ease.
Research indicates that a top-notch deep water well drilling machine is 40% more efficient than older models, and it cuts the cost per meter of drilling by 25%. This machine not only fulfills the requirements for agricultural irrigation and municipal water supply but also fits perfectly in specialized fields like geothermal development and mining exploration, making it essential for tapping into deep water resources.
Parameters of Deep Water Well Drilling Machine
| Model | YG-180 | YG-200 | YG-300 | YG-400 | YG-600 | YG-800 |
| Machine weight(T) | 4.5 | 5.8 | 9 | 10 | 12 | 13 |
| Drilling diameter(mm) | 140-254 | 140-305 | 140-325 | 140-350 | 140-350 | 140-500 |
| Drilling depth(m) | 180 | 200 | 300 | 400 | 600 | 800 |
| One-time advance length(m) | 3.4 | 3.4 | 6.6 | 6.6 | 6.6 | 6.6 |
| Walking speed(km/h) | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 |
| Climbing angles(Max.) | 30 | 30 | 30 | 30 | 30 | 30 |
| Equipped capacitor(KW) | 55 | 65-70 | 84 | 92 | 115 | 140 |
| Using air compressor(MPA) | 1.7-2.5 | 1.7-3.0 | 1.7-3.3 | 1.7-3.5 | 1.7-3.5 | 1.7-3.5 |
| Air consumption(m³/min) | 17-31 | 17-30 | 17-35 | 17-35 | 17-35 | 17-35 |
| Drill pipe diameter(mm) | Φ76 Φ89 | Φ76 Φ89 | Φ89 Φ102 | Φ89 Φ102Φ108 | Φ102Φ108Φ114 | Φ76 Φ89 Φ102 |
| Drill pipe length(m) | 1.5 2.0 3.0 | 1.5 2.0 3.0 | 1.5 2.0 3.0 6.0 | 1.5 2.0 3.0 6.0 | 1.5 2.0 3.0 6.0 | 1.5 2.0 3.0 |
| Rig lifting force(T) | 15 | 12 | 20 | 22 | 28 | 35 |
| Swing speed(RPM) | 45-65 | 45-70 | 55-115 | 45-115 | 45-115 | 55-115 |
| Swing torque(N.m) | 3200-4600 | 3500-4800 | 6200-8500 | 6500-9000 | 8500-11000 | 8660-11150 |
| Machine size(mm) | 3800*1500*2200 | 4000*1750*2450 | 5900*2000*2850 | 5900*2100*2850 | 6000*2200*2850 | 6100*2100*2900 |
Wide Applications of Deep Water Well Drilling Machine
Agriculture and Livelihood: Solving Water Supply Problems in Remote Areas
In the world of agricultural irrigation, deep water well drilling machines play a crucial role by tapping into deep water sources in dry regions, making it possible to irrigate large expanses of farmland. Take, for instance, the farms in Latin America that frequently rely on the YG-180 model. With its impressive drilling depth of 180 meters, it can reliably access groundwater, ensuring that up to 1,000 mu of farmland gets the water it needs for irrigation.
In the livelihood water supply of remote communities, the portability and adaptability of the equipment are crucial. The small deep water well drilling machine weighs only 4.5 tons, which can move flexibly in mountainous areas and villages to provide clean drinking water for residents quickly.
Industry and Energy: Adapting to Professional Engineering Needs
In geothermal development projects, it’s crucial for deep water well drilling machines to handle high-temperature environments. The YG-600 model is designed to drill as deep as 600 meters while keeping the borehole verticality error below 0.5%. This precision is key to ensuring the geothermal heat exchange system operates efficiently.
In mining exploration and offshore drilling, the high torque and stability of the equipment are key. A deep rock well drilling rig such as the YG-800 can penetrate hard granite to provide accurate geological samples for mining exploration and meet the production water needs of mines.
Municipal and Infrastructure: Ensuring Water Supply for Large-Scale Projects
As cities grow and industrial parks are built, the need for municipal water supply is on the rise. A deep water well drilling machine can efficiently create multiple deep water wells at once, with each well capable of producing tens of tons of water per hour. This ensures a reliable water supply for large communities and factories.
In infrastructure projects such as roads and bridges, the equipment can also be used for dewatering well construction, stabilizing the foundation through deep drainage to avoid collapse risks during construction.
Success Cases: How Does Deep Water Well Drilling Machine Solve Practical Problems?
Case 1: Hard Rock Water Extraction Project in Mountainous Areas of the US
Tom, a farmer from Colorado, was facing a challenge with drilling wells in the rugged, granite-filled mountains. The traditional equipment just wasn’t cutting it. So, we suggested the YG-300 deep water well drilling machine, along with a down-the-hole hammer that can handle up to 30Bar pressure.
With a torque of 6200-8500N.m, the equipment achieved a drilling speed of 15 meters per hour in granite strata, 3 times faster than the equipment Tom used before. It only took 10 days to complete 3 deep wells of 300 meters, reducing the cost per meter of drilling by 30%. The farm’s irrigation water problem was completely solved, with an annual increase of about 50,000 US dollars in income.
Case 2: Geothermal Development Project in Chile
A Chilean energy company was on a mission to tap into geothermal resources, which meant they had to drill through tough 500-meter layers of hard rock while ensuring the boreholes were both vertical and stable. To tackle this challenge, we supplied them with the YG-600 deep well drilling rig, boasting a powerful lifting force of 28 tons and capable of creating boreholes up to 350mm in diameter.
During the operation, the equipment successfully penetrated complex rock formations, controlling the borehole verticality error within 0.3%, meeting the installation requirements of the geothermal heat exchange system. The project construction period was shortened by 15 days, and the equipment failure rate was less than 3%, winning high recognition from the customer.
Core Advantages of Deep Water Well Drilling Machine
- Full hydraulic control: Flexibly adjust speed, torque and propulsion pressure to adapt to different geology;
- High-adaptability chassis: Crawler-type design, walking speed of 2.5km/h, climbing angle of 30°, capable of moving in muddy terrain;
- Multi-process compatibility: Supports down-the-hole drilling, air-lift reverse circulation drilling and other processes, and can be paired with mud pumps and foam pumps;
- Strong durability: The main frame is made of high-strength low-carbon alloy steel, with imported key components, extending service life by 30%.
How to Choose the Right Deep Water Well Drilling Machine? Selection Guide
Select Model by Geological Conditions
- Hard rock strata: Choose models with torque ≥6000N.m (such as YG-300, YG-800) paired with high-pressure down-the-hole hammers;
- Quicksand/soft soil strata: Prioritize models with casing drive systems to ensure borehole stability;
- Complex mixed strata: Recommend YG-400, whose adjustable speed (45-115rpm) adapts to various geology.
Determine Parameters by Project Requirements
- Drilling depth: Choose 180-300m models for agricultural/livelihood wells, and 400-800m models for industrial/geothermal projects;
- Mobility needs: Crawler-type (30° climbing) for mountainous operations, trailer-type for plain batch operations;
- Power type: Diesel power for areas without power grids, electric (380V three-phase electricity) for stable power supply.
Confirm Supporting Equipment
When it comes to deep water well drilling machines, using air compressors is a must. To keep things running smoothly and efficiently, it’s best to pair your air compressor with one that has an air volume of 17-36m³/min, depending on the model. This will help ensure that your drilling process is both effective and clean.
Deep Water Well Drilling Machine Frequently Asked Questions
No, but YG models have wide adaptability. Choose a deep rock well drilling rig (such as YG-800) for hard rock, and a casing drive system for quicksand strata. Our geological engineers can provide specific advice.
YG’s crawler-type deep water well drilling machine has a walking speed of 2.5km/h and a climbing angle of 30°, which can move flexibly in mountainous and muddy terrain without additional hoisting equipment.
Maintenance cost is low, with annual maintenance cost accounting for about 3%-5% of the total equipment price. YG equipment has an average time between failures (MTBF) of more than 2000 hours, with a 1-year warranty on core components.
The key factors are torque, lifting force and borehole verticality. For example, deep hard rock projects require torque ≥ 8000N and lifting force ≥20 tons to ensure efficient penetration and drilling quality.
Daily Maintenance Tips for Deep Water Well Drilling Machine
- Regularly check the hydraulic system: Check the hydraulic oil level every 50 hours to ensure no leakage, and replace the hydraulic oil once a year;
- Drill bit and drill pipe maintenance: Clean drill bit wear in time after hard rock operations, and regularly apply lubricating oil to drill pipe threads;
- Air filter cleaning: Clean once every 10 hours in dusty environments to avoid insufficient engine air intake;
- Notes for first use: Replace engine oil after the first 20 hours of operation, and then every 200 hours.
Why Choose YG’s Deep Water Well Drilling Machine?
YG Machinery boasts 18 years of expertise in the research and development of drilling equipment. Our deep water well drilling machine has proudly achieved ISO9001 certification, featuring imported core components and a robust main frame crafted from high-strength alloy steel. We offer a range of services, including pre-sales geological evaluations, tailored equipment selection, remote technical support, and quick access to spare parts.
From the rugged farms of the US to geothermal projects in Chile, YG’s deep water well drilling machine has made its mark in over 20 countries around the globe, earning a reputation for its efficiency, durability, and cost-effectiveness. If you’re looking for more information on our deep well drilling rig models or want to request a quote, don’t hesitate to reach out to our dedicated team directly.
