In today’s construction, maintenance, and industrial fields, working at heights can be quite a challenge, especially when it comes to navigating complex structures and those tricky, hard-to-reach spots. Traditional equipment often falls short in these situations. That’s where the articulating boom manlift from YG Machinery comes in. This innovative aerial work platform, sometimes referred to as a z boom lift, features a unique jointed arm design that offers incredible obstacle clearance along with impressive vertical and horizontal reach. It’s a game changer for tackling work in complicated spaces!
Articulating Boom Manlift Parameter:
| maximum working height | 12m | |
| Maximum platform height | 10m | |
| maximum horizontal extension | 5.8m | |
| Maximum span height | 4.78m | |
| Maximum carrying capacity | 200kg | |
| Gradeability | 25% | |
| Minimum turning radius | 2.16m | |
| Running speed (km/h) | decline | 3km/h |
| rising | 0.8km/h | |
| Closing length | 4.35m | |
| Car closing width | 1.5m | |
| closing height | 1.99m | |
| Platform size (length × width × height) | 1.1m×0.65×1.13m | |
| turntable rotation | 355° | |
| Platform rotation | 120° | |
| Ground clearance | 0.15m | |
| Drive wheel size | 0.59*0.19/0.66*0.17m | |
| gross weight | 4700kg | |
| control voltage | 24V | |
| Battery | 48/320 V/Ah | |
| charger | 48/40 V/A | |
| Hydraulic tank volume | 40 L | |
| Wheelbase | 1.65m | |
Articulating Boom Manlift: Core Technology and Key Advantages
1. Working Principle and Key Technical Features
The key advantage of the articulating boom manlift lies in its multi-section, hinged boom. These sections bend and extend like a human arm, enabling the lift to “reach over” obstacles such as pipes, roof edges, or existing machinery. The hydraulic system is crucial to this complex movement, offering precise flow control and excellent hydraulic stability.
Our articulating boom manlift range, from the compact small articulating boom lift to the heavy-duty 60 ft articulating boom lift, features intuitive platform controls. This allows the operator to accurately position the platform at any required angle and height, ensuring efficient and safe operations.
2. Distinct Core Advantages: Flexibility and Safety
- Unrivaled Obstacle Clearance: This is the most unique feature of the articulating boom manlift. The articulated boom allows the equipment to bypass obstacles from below or the side, delivering the worker directly to the work point.
- Exceptional Versatility: Whether indoors in narrow aisles or outdoors on rugged terrain, our lifts demonstrate outstanding versatility. Electric or diesel power options are available, meeting different energy efficiency and environmental needs.
- Enhanced Working Radius: Even the small articulating boom lift offers a much greater extension than traditional lifts, like our mobile hydraulic lift. This significantly increases the working coverage area.
Articulating Boom Manlift Q&A
The choice depends on your specific needs. Telescopic (Straight) Boom Lifts offer massive vertical and horizontal reach for open, obstacle-free areas. If your job requires obstacle clearance or multi-angle positioning within a crowded industrial facility, the articulating boom manlift is a more efficient and safer solution.
Safety compliance is our top priority. Our 60 ft articulating boom lift models are equipped with load-sensing systems, tilt sensors, emergency stop buttons, and platform self-leveling functions. Furthermore, boom limit switches and emergency descent systems ensure the equipment can land safely in any fault scenario.
The articulating boom manlift is primarily designed for lifting people to work at height. If your task mainly involves high-level material movement and stacking, we highly recommend the telescopic boom forklift. This machine offers superior load capacity and reach specifically for material handling applications.
🌎 Wide Range of Applications and Success Stories
The unique flexibility of the articulating boom manlift makes it the preferred choice for complex high-altitude work.
Expanded Application Fields
- Industrial Maintenance: Bypassing complex machinery and piping to perform high-level equipment repairs inside factories.
- Aerospace: Conducting multi-angle inspections and maintenance on aircraft wings and tails inside hangars.
- Power and Telecom: Maintaining power lines and signal towers without disrupting traffic or contacting live equipment.

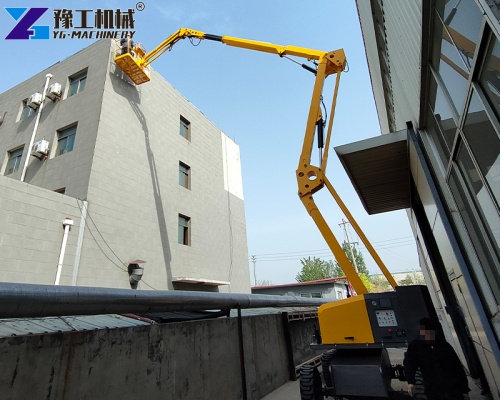

- Building Exteriors: Installing glass, painting, or cleaning buildings with complex shapes.
Customer Success Story: Australian Energy Facility Upgrade
Ms. Evelyn, a contractor in Sydney, Australia, was tasked with upgrading an aging gas power station. The challenge was working above a maze of pipes and heat exchangers; the working radius was tight, and ground obstacles were numerous. Traditional straight boom lifts simply couldn’t reach the work points.
We provided Ms. Evelyn with a customized articulating boom manlift solution. She ultimately chose a diesel-powered Z boom lift to tackle the rugged outdoor terrain. The machine’s excellent obstacle clearance allowed workers to maneuver effortlessly around the piping to perform critical valve maintenance. Ms. Evelyn reported that the lift significantly improved worker safety compliance and reduced the estimated four-week timeline to just three weeks.
Electric vs. Diesel: Choosing the Right Articulating Boom Manlift for Your Project
Customers often debate between electric and diesel power. This impacts energy efficiency and the working environment.

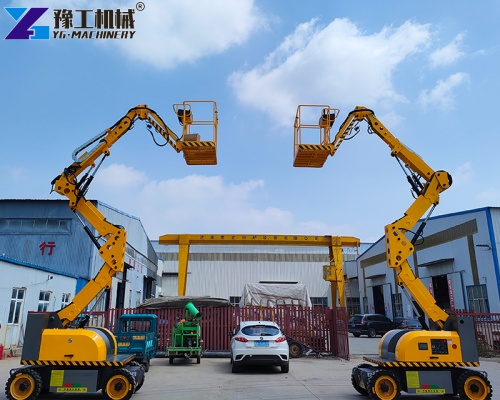

Electric articulating boom manlift models (like many small articulating boom lift types) are ideal for indoor, confined spaces or areas with strict noise/emission limits. They are quiet, zero-emission, and generally require less maintenance. Their platform controls are highly responsive, perfect for precise positioning.
Diesel articulating boom manlift models are designed for outdoor, rough terrain. They typically offer greater power, rough-terrain tires, and higher load capacity. For heavy-duty construction requiring a 60 ft articulating boom lift or higher reach, diesel power provides the necessary endurance and performance.
Boosting Articulating Boom Manlift Versatility: Attachments and Applications
How can you maximize the value of your articulating boom manlift? Adding optional accessories can greatly enhance the equipment’s versatility.
For example, custom tool trays and auxiliary power outlets allow workers to perform longer, more complex tasks from the platform. Additionally, some models can be fitted with specialized non-marking tires, enabling the z boom lift to transition between indoor and outdoor work without damaging floor surfaces. We also supply specific hydraulic fluid (e.g., for low temperatures) to ensure excellent hydraulic stability in all climates.
Key Maintenance to Ensure Articulating Boom Manlift Safety Compliance and Long-Term Reliability
Safety compliance and long-term reliability are the cornerstones of owning an articulating boom manlift. Regular, professional maintenance is crucial for ensuring their sustained high performance.
- Routine Lubrication: Inspect and lubricate all hinge points and boom sections to ensure smooth and precise movement.
- Hydraulic System Check: Carefully inspect all hydraulic lines and fittings for leaks, and routinely replace hydraulic fluid and filters. This is vital for maintaining hydraulic stability.
- Control System Testing: Before each use, test the upper and lower platform controls, limit switches, and the emergency stop button to confirm all safety functions are operational. Following the manufacturer’s maintenance schedule is the best way to prevent the need for troubleshooting.
🤝 YG Machinery: Your Reliable Partner with Quality Service Assurance
By choosing YG Machinery, you choose experience, quality, and support. We offer a full range, from small articulating boom lift models to the 60 ft articulating boom lift, alongside specialized equipment like the telescopic boom forklift.
Quality Service Assurance
We provide premium service from start to finish:
- Customized Solutions: Our expert team will recommend the most suitable articulating boom manlift model based on your project needs (i.e., whether you require obstacle clearance, the necessary working radius, and load capacity).
- Comprehensive After-Sales Support: We offer full technical support, genuine spare parts, and detailed routine maintenance guidance, ensuring your equipment’s long-term reliability.
- Global Logistics Expertise: We have extensive export experience, ensuring your equipment is delivered safely and efficiently worldwide.
Customer Testimonial
“We use YG’s z boom lift for indoor maintenance. Its obstacle clearance capability is fantastic, allowing us to easily avoid roof structures. The platform controls are very precise, and our team is highly satisfied with its safety compliance.” – Mr. Marco, Milan, Italy
📞 Get Your Exclusive Articulating Boom Manlift Solution Today!
Don’t let complex obstacles stall your project. Contact the YG Machinery expert team immediately for professional advice and a free quote on the articulating boom manlift.
Get a Free Quote and Customize Your Exclusive Articulating Boom Manlift Solution Now!
